MULTI JET WATER METER

ลักษณะ (Feature)

 Multi-Jet dry dial water meter is ideal for domestic commercial and industrial applications, the multi-jet design allows simplicity and accuracy with wide flow ranges, even in low flow applications. Magnetically driven, hermetically sealed register will not leak or fog and is completely separated from the water. These water meters are designed for long service life and maintenance-free operation.

Specification

• Non-toxic and environmental protection
• ABS engineering plastic for measuring chamber, reduce wear and maintain accurate measurement.
• Magnetic drive,lower tranmission resistance, anti-magnetic, inhibit to wxterior magnet interference.
• Evacuated and sealed dry dial register ensures clear reading
• Filter and non return valve for selecting
• Can be equipped with reed switch pulse
• Size available is 15-50mm
• Surpasses accuracy requirments of 75/33/EEC Class B
• Surpasses ISO 4064 Class B
• Expoxy powder coated with brass body

Working condition

• Cold water temperature ≤50 °C
• Hot water temperature ≤ 90 °C
• Water pressure ≤ 2 MPA (20 Bars)

Indication

Cubic meter (m3) or Gallon for selecting

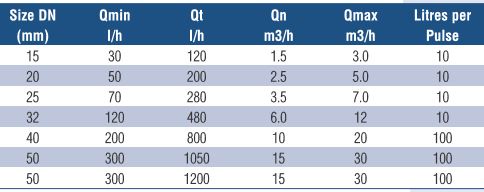

Dimension
